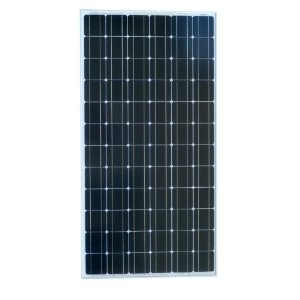

Solarvention 180W Mono Solar Panel

180 Watt Monocrystalline Solar Panel Review

The Solarvention 180W Mono Panel is an excellent solar module for people looking for a simple way to enter the world of free solar power.

This large 12 volt, 180 watt mono panel is water resistant and sealed against the elements making it ideal for use on a roof or in the garden to provide free solar power for powering the home or as part of an off-grid or remote power solar projects such as a shed or outhouse that is not connected directly to the utility grid.

180W Mono Solar Panel Rating

  • 1. Cost per Watt:4 star rating
  • 2. Quality of Construction:5 star rating
  • 3. Weight of Panel:a 3 star rating
  • 4. Rated Lifetime:another 5 star rating
  • 5. Value for Money:4 star rating

Overall Rating Score: 21/25

Available now from Amazon

What makes this Solarvention 180W Monocrystalline solar panel perfect for home use is that it is made using 72 long-lasting, high-efficiency, 125mm x 125mm monocrystalline photovoltaic cells arranged into a 12×3 + 12×3 configuration designed to give a full 180 watts of free solar power.

One Application of this 180W Panel

In addition, this 180W Mono Panel comes complete with 5m of high-current solar cable and industry standard MC4 connectors. It also comes with a fully waterproof junction box allowing you to connect it with other 180 watt solar panels to create larger roof mounted solar arrays.

This panel is a top-quality solar panels which has a 5 years product warranty and guarantees over 10 years for 90% power and 80% of full power after 20 years of continuous use with some of the highest solar cell efficiencies, around 17%, in the marketplace, all at affordable prices.

Making the SVMONO36-180 panel ideal for a wide range of uses such as marine, RV, cabins, and other off-grid applications.

Solar Panel Characteristics:

  • 72 (12×3 + 12×3) Monocrystalline Solar Cells
  • Peak Power (Wp): 180W
  • Voltage at maximum power (Vmp): 19.6V
  • Current at maximum power (Imp): 9.1A
  • Open circuit voltage (Voc): 24.0V
  • Short circuit current (Isc): 9.7A
  • Power allowance range: ± 5%
  • Dimensions: 58.2 x 26.5 x 1.57 inches
  • Weight: 25.6 lbs

This 180 watt, 12 volt solar panel is ideal for use in powering ON or OFF grid solar power systems and with the aid of a charge controller for charging deep cycle batteries. It’s rigid anodised aluminium frame and toughened 3.2mm tempered glass prevents damage due to frost, snow and high winds giving it a design life of over 25 years of consistent free power mounted to a roof.

The SVMONO36-180 Solar Panel has bypass diodes fitted to avoid any hot-spot effects making it perfect for placing in series with other panels to create larger roof mounted solar arrays. The backside of the panels frame is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame causing damage to the frame in cold season.

Solarvention 180W Mono Panel Main Features

Let’s take a look at some of this SVMONO36-180 Solavention solar panels features:

The Panels Good Points:

  • Top of the range 180 Watt Solar Panel with excellent performance.
  • Made from 72 (125×125) high performance, high efficiency monocrystalline solar cells.
  • Thick tempered glass and rigid anodised aluminium alloy frame for exceptional strength.
  • Bypass diodes to avoid hot-spot effect.
  • Weatherproof and durable, perfect for permanent outdoor use on a roof or in a garden.
  • Complete with 5m of flexible solar cable and MC4 connectors.

The Panels Bad Points:

  • Large size and weight for roof mounting.
  • Higher cost per watt compared to similar sized panels.
  • Requires additional roof mounting holes and/or brackets.

This high quality waterproof 180 watt solar panel is ideal for people who want to save money on their electricity bills and the environment, or where it would cost too much to install electrical cables to a shed or outhouse. The 180 watt panel is powerful enough to be used to power hundreds of devices that you may use in a shed, boat or caravan such as lights and pumps and will even generate free renewable solar power on a cloudy day.

Due to its stable, heavy duty anodised aluminium alloy frame and 3.2mm thick high-transparent glass gives it exceptional strength, making this solar panel perfect for permanent outdoor use on a roof or in the garden to provide free solar power. Also, the low-iron tempered anti-reflecting glass helps to increase the solar conversion efficiency of the panel and reduce overheating by direct exposure to the suns rays.

Connecting More 180W Mono Panel Together

For off-grid charging of batteries as in a caravan, camper van, boat or remote house type applications, why not connect this 180W Solar Panel together with other Solarvention 180W solar panels to form larger arrays of many kilo-watts producing a higher voltage or greater battery charging current. The following table gives you an idea of what is possible with this versatile 180W, 12V panel.

Panel Type: Solarvention 180W Mono Solar Panel
Panel Rating: 180 Watts (9.1A at 19.6V)Panel Dimensions: 58.2 x 26.5 x 1.57 inches
Panel QtySystem Power12V System24V SystemArray Area
2360 Watts0S-2P2S-0P21.50 ft2
3540 Watts0S-3Pnone32.25 ft2
4720 Watts0S-4P2S-2P43.0 ft2
5900 Watts0S-4Pnone57.76 ft2
61.08 kW0S-6P2S-3P64.51 ft2
81.44 kW0S-8P2S-4P86.01 ft2
101.80 kW0S-10P2S-5P107.52 ft2
122.16 kW0S-12P2S-6P129.02 ft2

Where: 0S-2P means zero panels connected in a Series string, but 2 panels connected together in a Parallel branch. Likewise, 2S-6P means 2 panels connected together in a Series string, with 6 strings connected in a Parallel branches.

Note that these 180 watt solar panels can be connected together in either a series, parallel or a combination of both to give a higher output voltage or charging current from the array than a single panel.

For example, if we connect four of these 180 watt solar photovoltaic panels together in series would give maximum operating voltage 78.4 volts (4 x 19.6) at 9.1 amps ( Vmp x Imp = 78.4 x 9.1 = 713W ). Likewise, connecting four of these SV-MONO36-180 panels together in parallel would give 19.6 volts at 36.4 amps ( Vmp x Imp = 19.6 x 36.4 = 713W ). It is always better for circuit design and installation to connect together high wattage solar panels such as this SV-MONO36-180 to give a higher voltage and lower current configuration. It saves on cable size too.

Solar charge controllers allow the configuration of solar arrays with high open circuit voltages (VOC) and may thousands of watts. The Outback FLEXMAX FM80 is a powerful charge controller capable of operating at its full maximum current rating of 80 Amps.

The 80 ampere Outback charge controller uses Maximum Power Point Tracking (MPPT) technology with adjustable current limiting to extend the life of the connected batteries.

This 80A Charge Controller can work with sealed, gel and lead-acid battery banks. The controller supports a wide range of nominal battery voltages from 12V to 60VDC and has the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button.

As with all the solar panels from Solarvention, it complies with IEC 61215 and IEC 61730 standards assuring the quality of the panel, so for more information, customer reviews about this 180W monocrystalline solar panel, Click Here to visit Amazon, you won’t find it cheaper anywhere else. Free shipping is also included.
